The canvas lets you view and work on all your app pages at once. Every page appears as a live-preview frame on an infinite board that you can arrange, annotate, and build on together with your team. Everything saves automatically as you work.

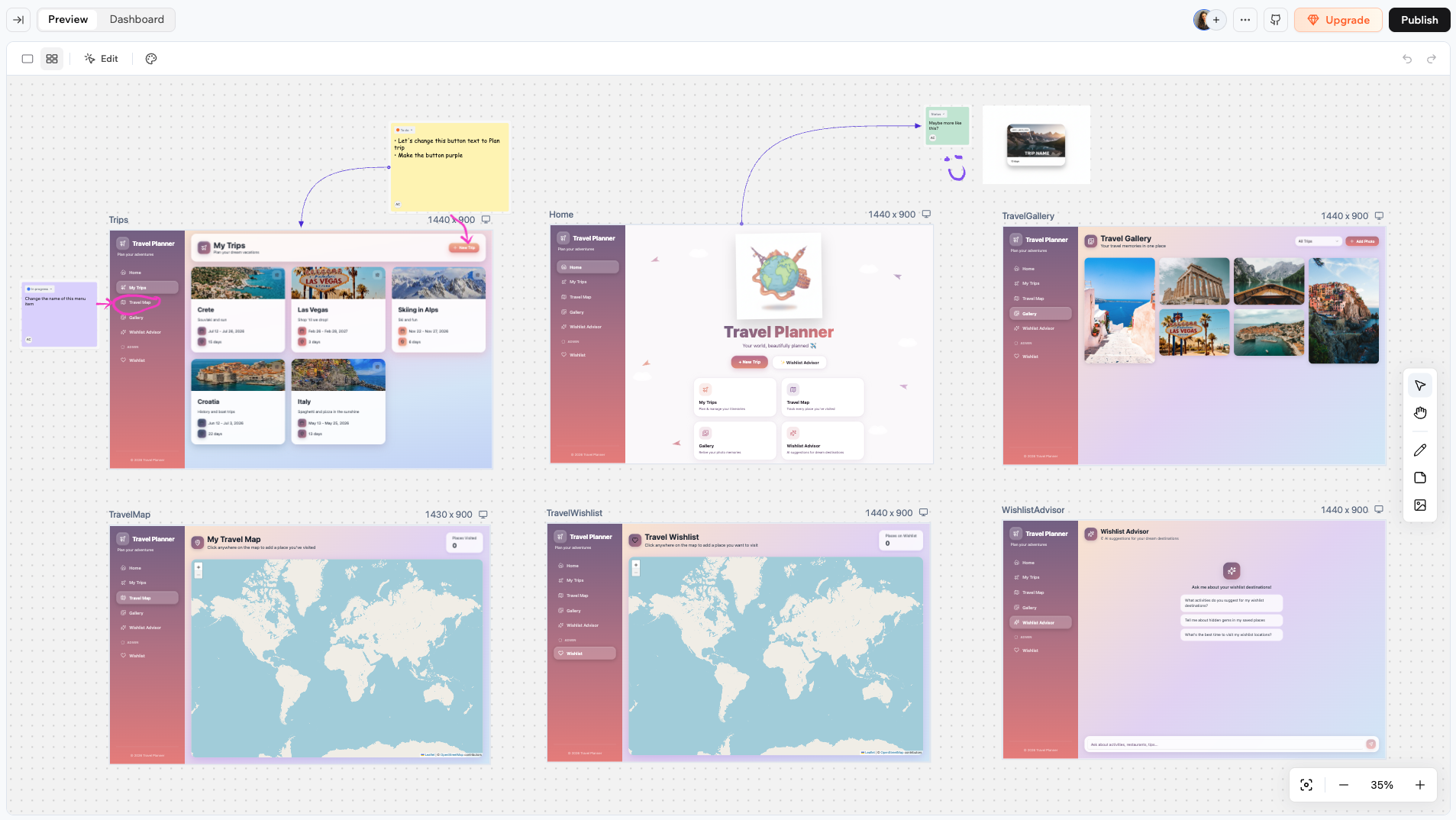

The canvas showing multiple app page frames on an infinite board
Use the canvas to plan your app layout, leave notes and feedback for yourself or your team, sketch ideas with drawings, or send instructions straight to the AI chat for implementation.
You can use Edit mode on the canvas just as you would in the regular editor. Click Edit in the top bar to select and style elements on any page frame.

​
Accessing the canvas

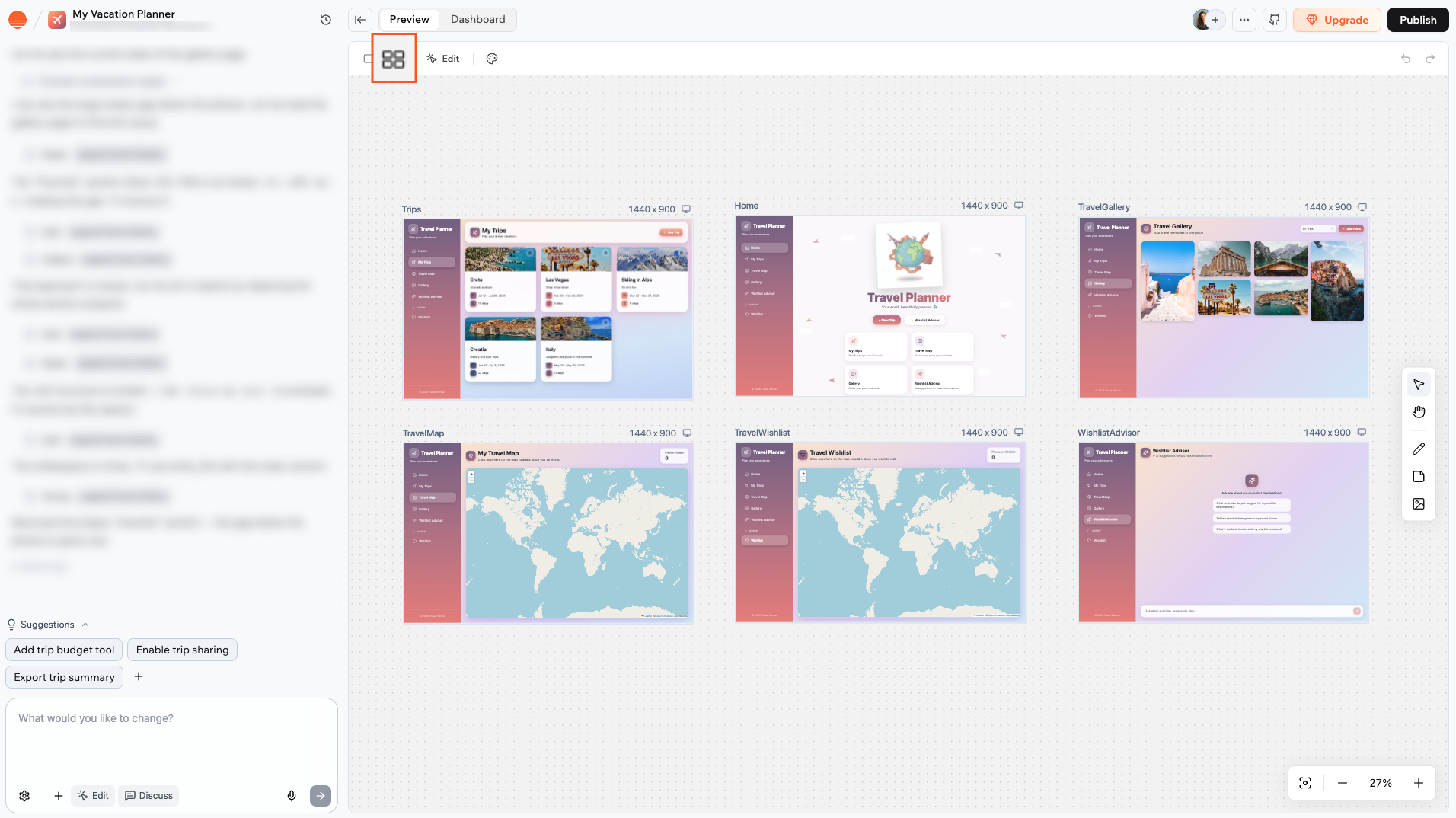

To access the canvas, open your app editor and click the Canvas icon in the top bar.
Accessing Canvas
When you open the canvas for the first time, it fits all your app pages into view. After that, your zoom level and position are saved per device, so the canvas reopens where you left off.

​
Collaborating on the canvas

Multiple people can work on the canvas at the same time. Each collaborator’s cursor appears as a named pointer as they move around. Colored outlines show which elements each person has selected.

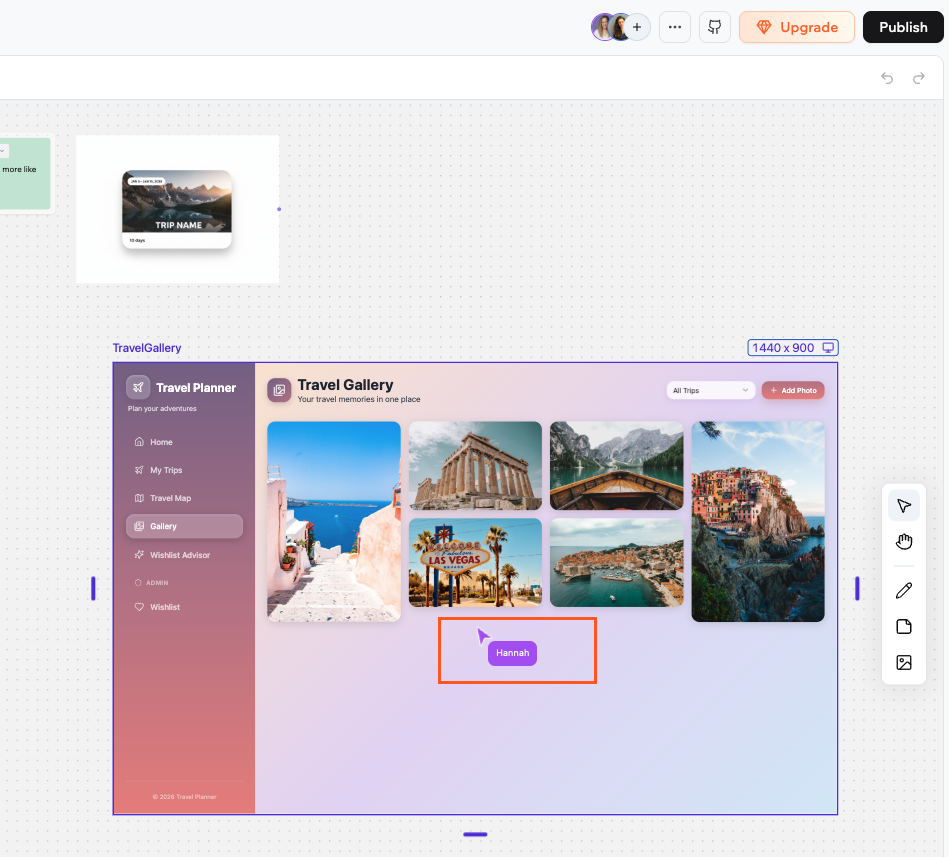

Multiple collaborators working on the canvas with named cursors
You can add collaborators to your app from the top of the editor. Learn more about collaborators

​
Managing the page frames

Every page in your app appears as a frame on the canvas, showing a live preview of that page.

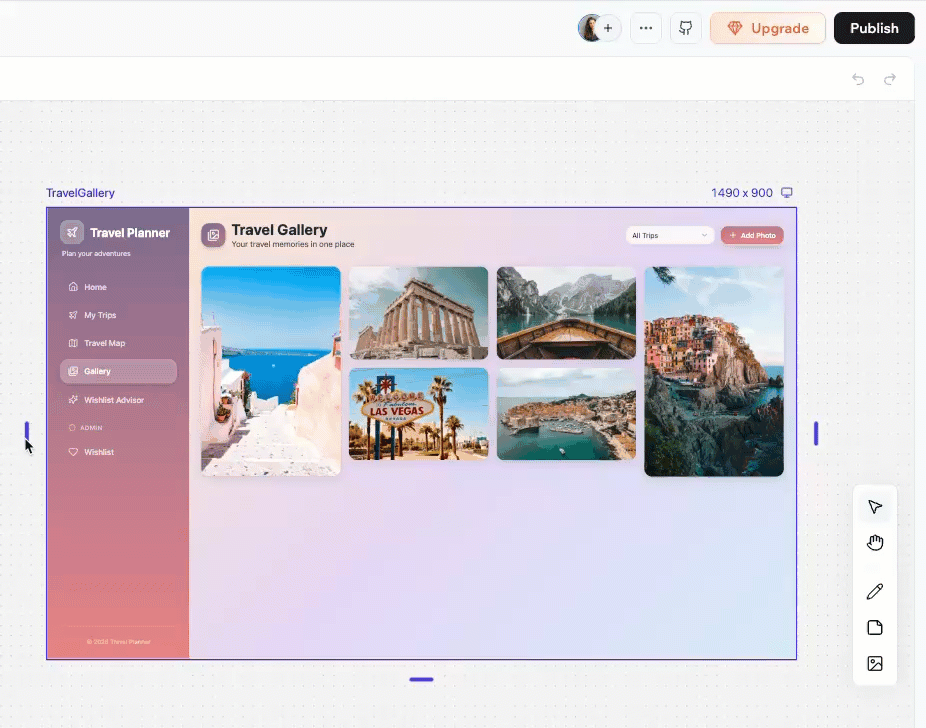

Resizing Page
You can do several actions on your page frames.
Click the frame to select it first, then click and drag the frame to move it wherever you want on the canvas.
Each frame has a viewport dropdown in the top right of its header. Click it to switch between Desktop, Tablet, and Phone to see how the page looks on different screen sizes.

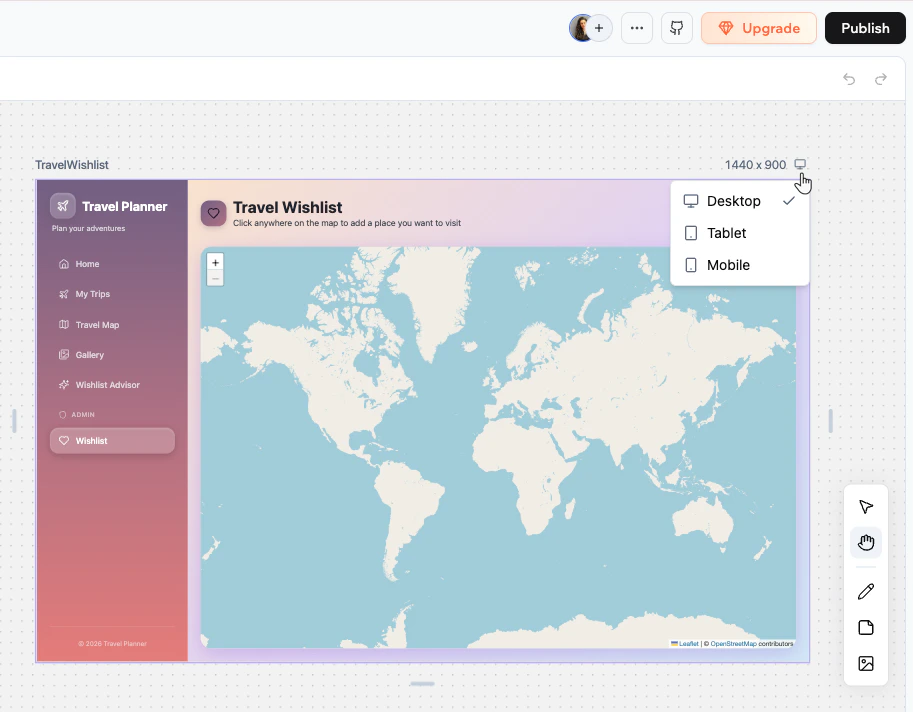

Canvas Responsive
Click the frame to select it. Resize handles appear on the edges. Drag any handle to adjust the frame’s width and height.
Right-click the frame and select Refresh to reload the page preview.

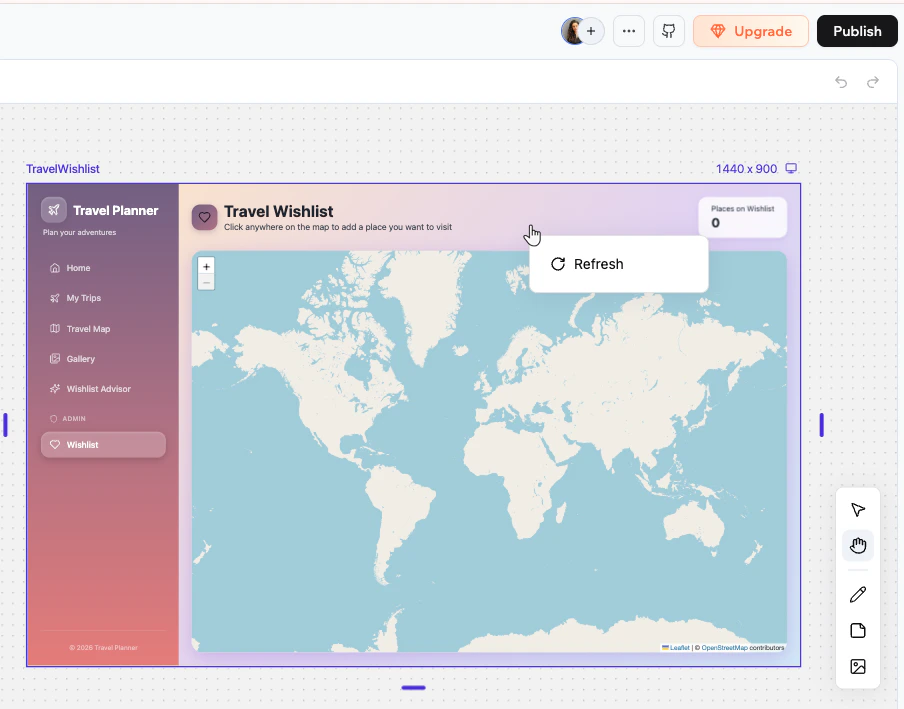

Refresh Frame Canvas
Pages cannot be deleted from the canvas. To remove a page, ask the AI chat to delete it for you.

​
Using the canvas toolbar

The toolbar on the right side of the canvas gives you access to the main tools.

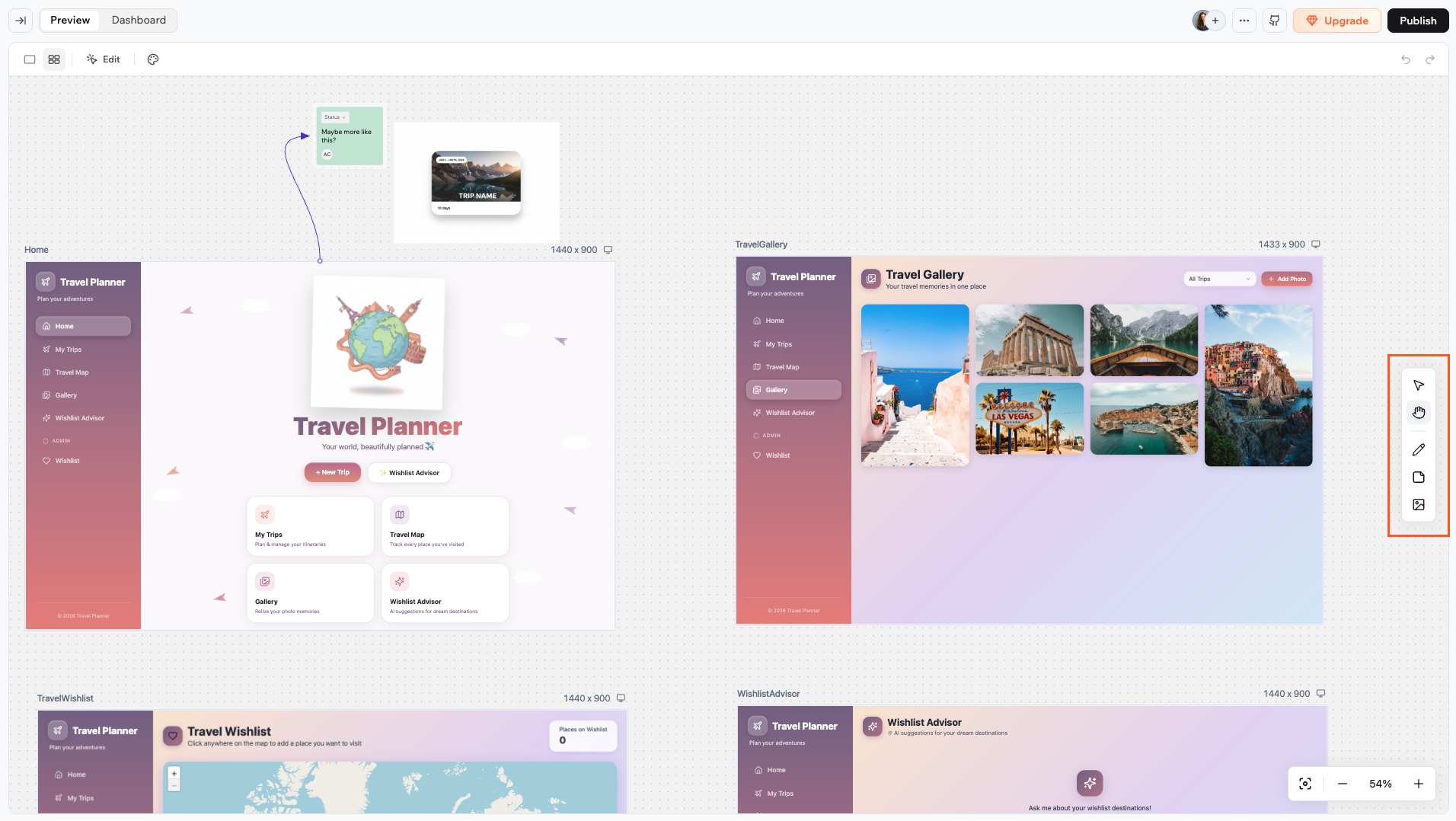

The canvas toolbar showing Select, Hand, Draw, Sticky note, and Image tools
See what you can do with the toolbar:
ToolShortcutWhat it does
SelectVSelect, move, and resize elements
HandHPan around the canvas without selecting anything
DrawDFreehand drawing
Sticky noteNAdd sticky notes
ImageIAdd images
Press Escape at any time to return to the Select tool.

​
Sticky notes

Sticky notes are the main way to leave ideas, feedback, and instructions directly on the canvas.

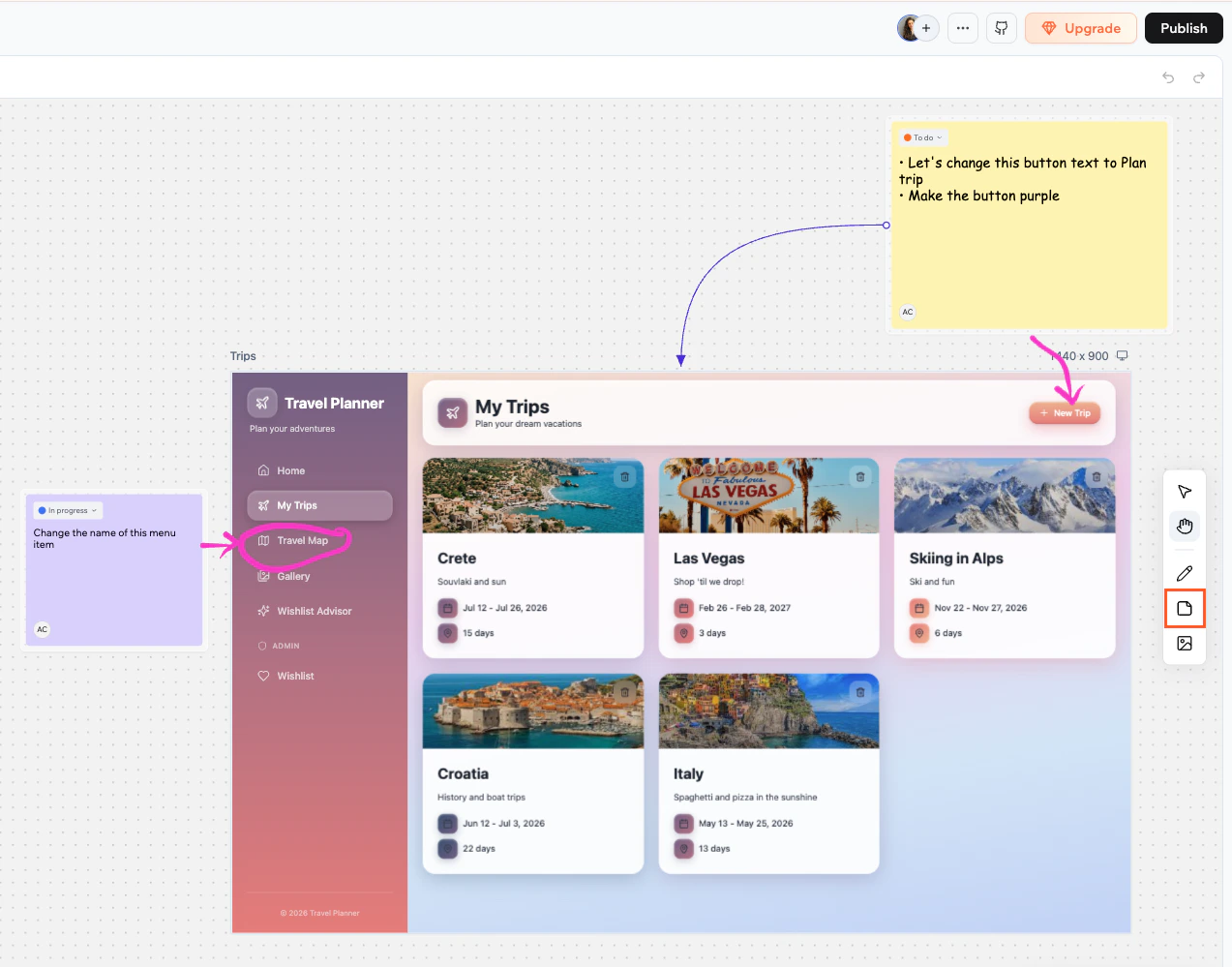

A sticky note on the canvas with status, color, and formatting options
Learn more about sticky notes:
To add a sticky note:
  1. Click the Sticky note tool in the toolbar or press N.
  2. Click anywhere on the canvas to place the note.
  3. Double-click the note to start typing.
The avatar of the person who created the note appears at the bottom left.
When a sticky note is selected, a toolbar appears below it with formatting options:
  • Color: choose a background color for the note.
  • Aa Font family: choose from four styles: default, handwriting, mono, or serif.
  • S Font size: Small, Medium, Large, or Extra large.
  • B Bold: make the text bold.
  • Bullet list: format the note as a bulleted list.
Each sticky note has a Status dropdown at the top. Click it to set the status:
  • To do (orange)
  • In progress (blue)
  • Done (green)
Connect a sticky note to a page frame to show which page it relates to.To connect a sticky note to a page:
  1. Hover over the note to reveal the connection handles on its edges.
  2. Drag from a handle to the page frame you want to connect.
Once you write a note, you can send its content to the AI chat for implementation. Hover over or select the note, then click Send to chat at the bottom right of the note.
  • If the note is connected to a page frame, the AI applies the change to that specific page.
  • If the note is not connected to a page, the AI decides which page to update based on the content of the note.

​
Drawings

The draw tool lets you sketch freehand anywhere on the canvas.

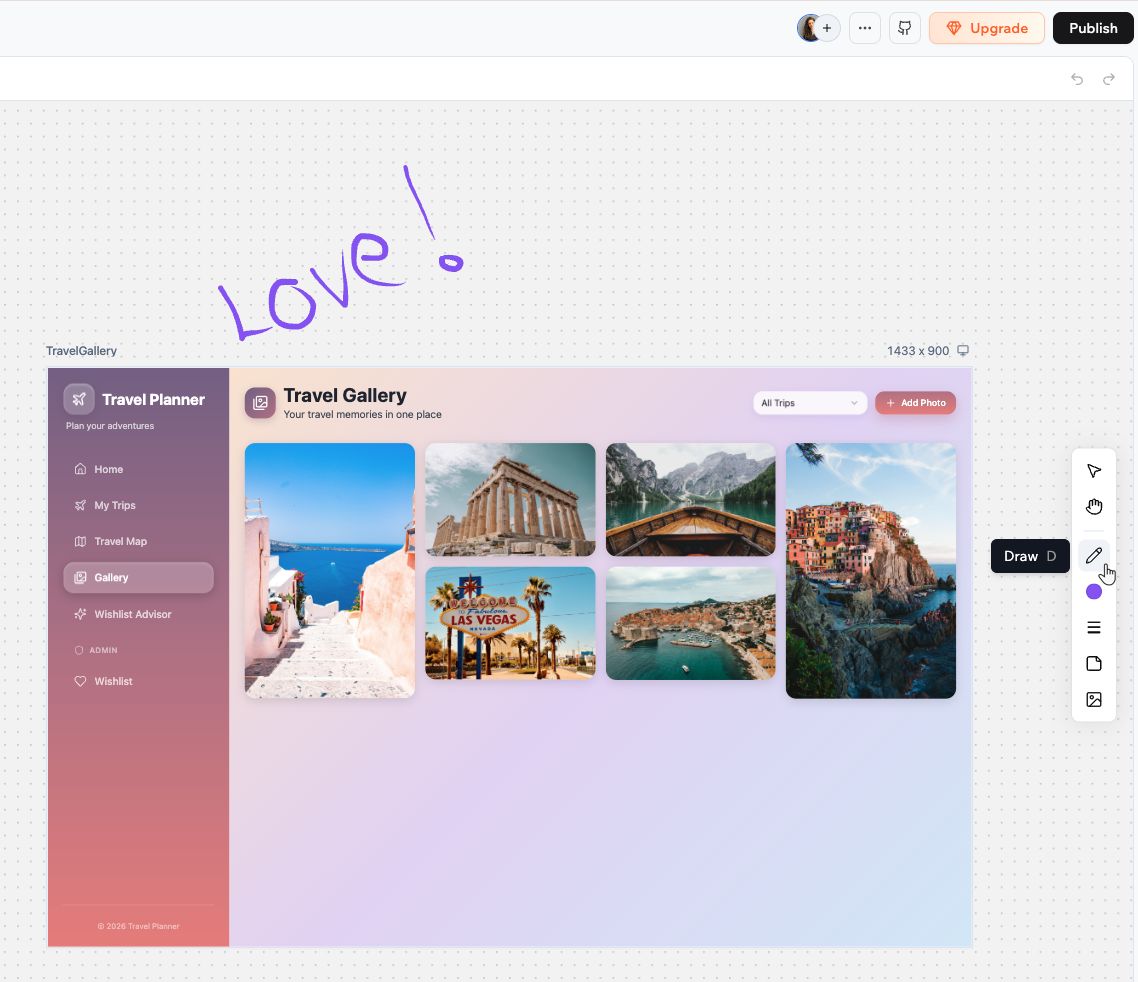

Freehand drawings on the canvas with stroke color and weight controls
Learn more about drawing on the canvas:
To draw on the canvas:
  1. Click the Draw tool in the toolbar or press D.
  2. Click and drag on the canvas to draw.
When the draw tool is active, you can customize it:
  • Stroke color : Click the drawing to open the color picker and choose your drawing color, or enter a hex value directly.
  • Stroke weight : Click the drawing and drag the slider to adjust the thickness of your stroke.
  • Flip: Right-click a drawing and select Flip horizontal or Flip vertical, or use the ⇧H and ⇧V shortcuts.

​
Images

You can add images to the canvas from multiple sources. Images are placed in the center of your current view.

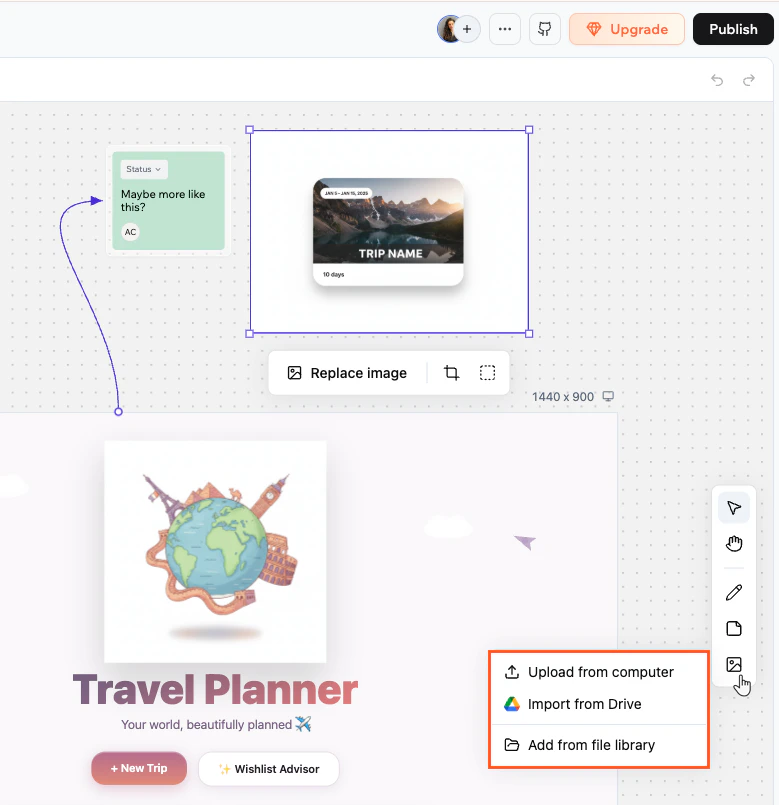

An image on the canvas showing the Replace image, Crop, and Border toolbar
Learn more about adding images to the canvas:
To add an image:
  1. Click the Image tool in the toolbar or press I.
  2. Choose where to get the image from:
    • Upload from computer: Select a file from your device.
    • Import from Drive: Pick a file from your connected Google Drive.
    • Add from file library: Choose from your app’s existing assets.
Select the image to access the toolbar below it:
  • Replace image: Swap the image for a different one.
  • Crop: Trim the image.
  • Border: Add or adjust a border around the image.
  • Flip: Right-click to flip the image horizontally or vertically.

​
Right-click actions

Right-click any sticky note, drawing, or image to open its context menu. The following actions are available:
ActionKeyboard shortcut
Cut⌘X
Copy⌘C
Paste⌘V
Paste to replace⇧⌘R
Duplicate⌘D
DeleteDelete or Backspace
Bring to front]
Send to back[
Flip horizontal (drawings and images)⇧H
Flip vertical (drawings and images)⇧V
Lock / Unlock⇧⌘L

​
Adding arrows

You can connect any two elements on the canvas with an arrow to show relationships, for example linking a sticky note to the page it refers to.

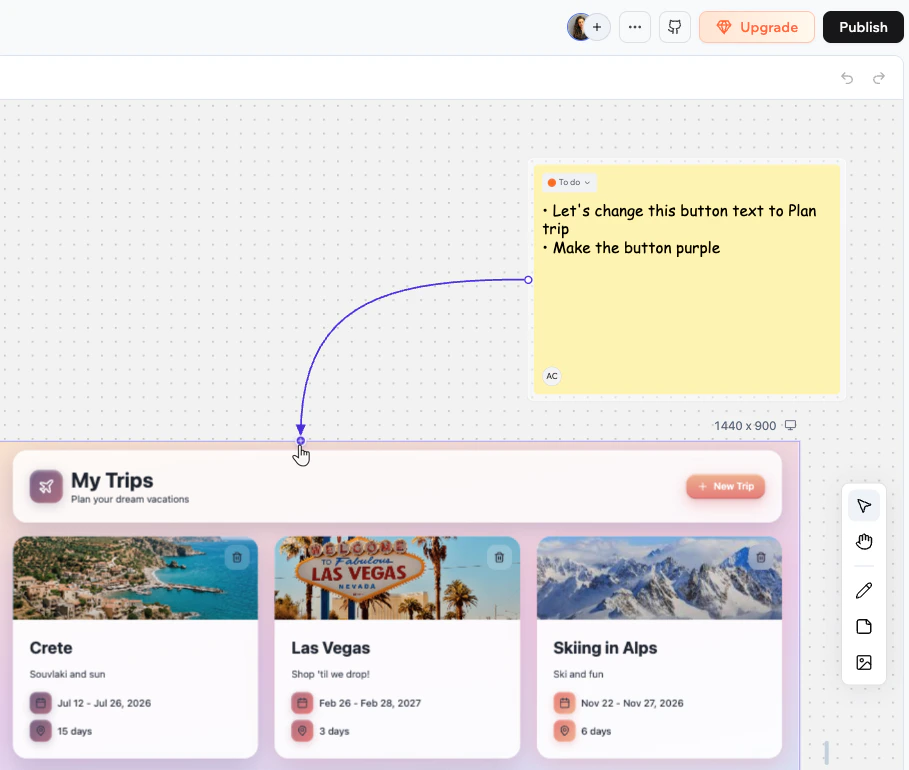

An arrow drawn from a sticky note to a page frame on the canvas
To create an arrow:
  1. Hover over an element to reveal the connection handles on its edges.
  2. Drag from a handle to another element.
To remove an arrow, select it and press Delete on your keyboard.

​
Locking elements

Locking an element prevents anyone from moving, resizing, or editing it until it is unlocked. This helps avoid conflicts when multiple people are working on the same canvas. You can lock sticky notes, drawings, and images.

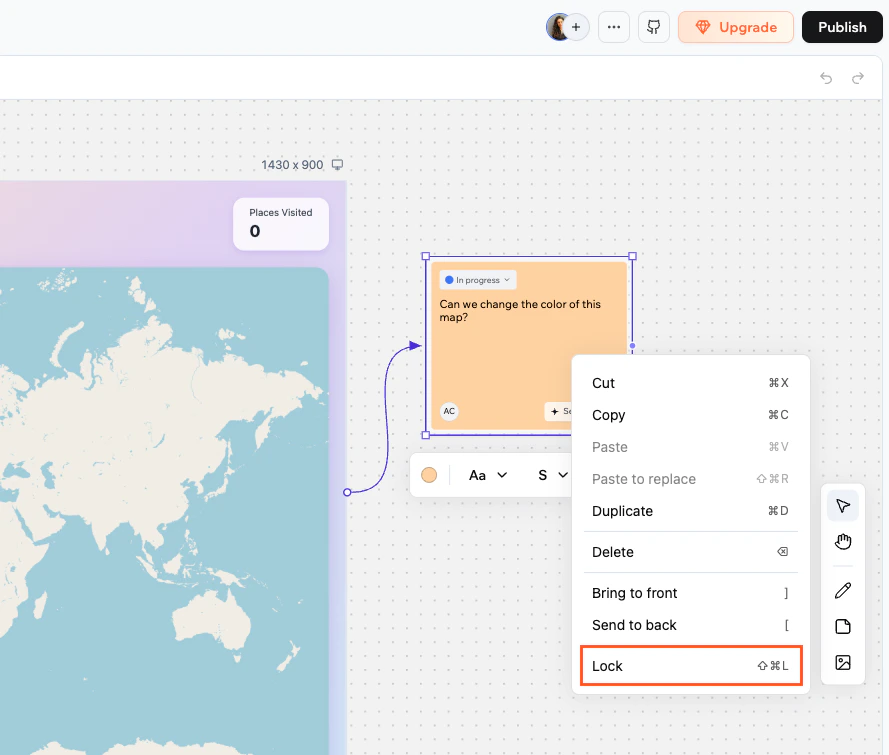

Right-click menu showing the Lock option on a sticky note
To lock or unlock an element:
  • Right-click the element and select Lock or Unlock.
  • Or select the element and press ⇧⌘L.

​
Zoom and navigation

The zoom bar sits at the bottom right of the canvas.
ControlShortcutAction
Zoom to fit⌘1Fit the whole canvas into view
−⌘-Zoom out one step
PercentageClick to open a dropdown with preset zoom levels
+⌘+ or ⌘=Zoom in one step
⌘0Reset to 100%
